Avionics
Our avionics systems are qualified for frontline military aircraft. Designed and manufactured to perform in the most demanding airborne environments, they meet the stringent requirements of military aviation.
Flight critical, mission proven

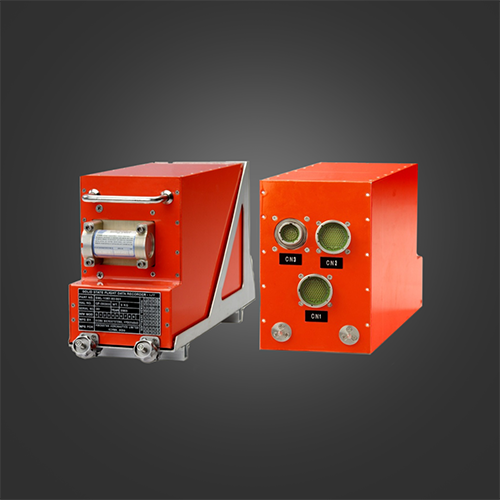

SSFDR – IJT/ALH
- State of the art design with Solid State Crash Protected Memory Module (PMM) with Underwater Locator Beacon (ULB)
- Suitable for Rotary Wing and Fighter Aircraft platforms
- Records up to 25 hours of aircraft data and 2 hours of audio
- Online telemetry of data; milk-out of recorded data on a high-speed link
- Acquires data on ARINC-717, ARINC-429, optional MIL-STD-1553 bus
- Acquires Analog, Discrete, Frequency, Synchro inputs
- Multi-board architecture with ex-rigid PCB interconnectivity
- Filtered power supply and connectors
- ATR Tray Mounting
- Conforms to latest environmental standards
Flight critical, mission proven

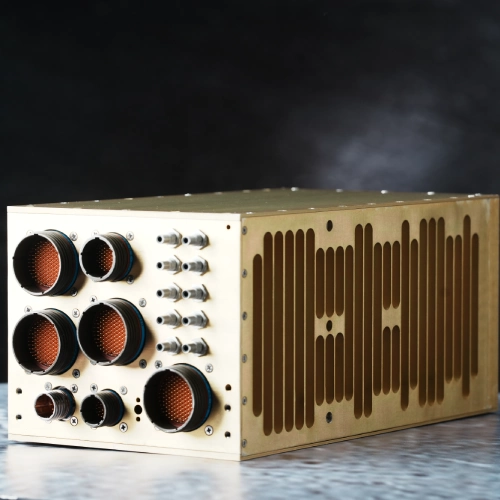

SSFDR – SU-30
- Flight Data Recorder for Su-30 platform
- Multi-processor architecture
- Main processor module based on ARM A7 architecture with 400MHz clock
- Main processor module equipped with 16MB Flash, 32MB SRAM/SDRAM, 2MB NVRAM and 32GB EMMC
- Intelligent I/O modules based on ARM Cortex-M4/M7
- Multiple communication interfaces: RS-232, RS-422, USB 2.0 Type-C
- MIL-STD-1553B (10 buses)
- Over 200 discrete I/O channels with various voltage levels
- ARINC-429 (48 RX, 8 TX)
- ARINC-717 (1 RX, 1 TX)
- Audio inputs (4 inputs and 1 output)
- Analog inputs (56 channels)
- Telemetry over high-speed Ethernet (1000/100/10 Mbps)
Flight critical, mission proven

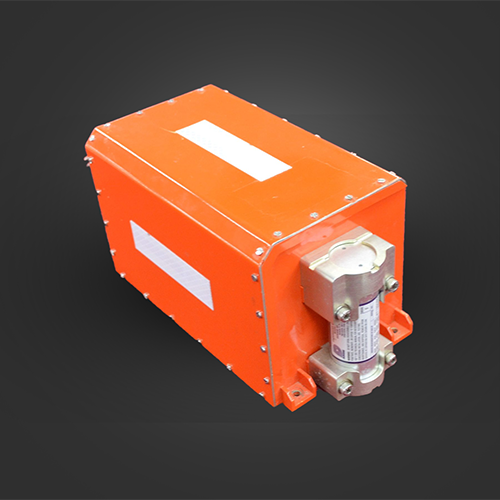

SSFDR – Cheetah/Chetak
- Based on ARM Cortex M7 MCU
- Acquires 25 analog inputs, 72 discrete inputs, 6 frequency inputs and 4 audio inputs
- Records 25 hours of aircraft data and 2 hours of audio
- Airborne communication interfaces: ARINC-429 and ARINC-717
- Telemetry and milk-out data through Ethernet interface
- D38999 circular connector lead terminations
- Conforms to latest environmental standards
Flight critical, mission proven
SSFDR Recorder Unit – SU-30
- Recorder unit for Su-30 platform; connects to the EFDR unit on ARINC-717
- ARM based heterogeneous processor, 1GB DDR3 RAM, 32GB EMMC
- 16MB Flash, 32MB SRAM/SDRAM, 2MB NVRAM and 64GB PMM
- Records data into crash-protected memory module (PMM)
- Multiple communication interfaces: RS-232, RS-422, USB 2.0 Type-C
- MIL-STD-1553B (8 nodes)
- ARINC-429 (44 RX, 4 TX)
- ARINC-717 (1 RX, 1 TX)
- Audio (4 inputs and 1 output)
- 186 discrete inputs and 20 discrete outputs
- High-speed Ethernet (1000/100/10 Mbps)
Flight critical, mission proven

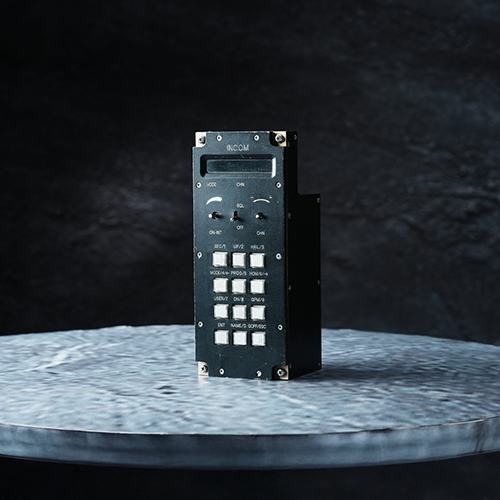

INCOM Controller – MIG 27
- Operator interface for INCOM transceivers for UHF/VHF communication
- Interfaces on MIL-STD-1553 bus
- Cockpit-mount equipment
- Self-illuminated front panel fascia
- Intensity control for alphanumeric display
- Backlit window keys with legend inserts
- Machined aluminium enclosure
- Conforms to latest environmental standards
- Fully qualified for airborne use on Fighter Aircraft platform
Flight critical, mission proven

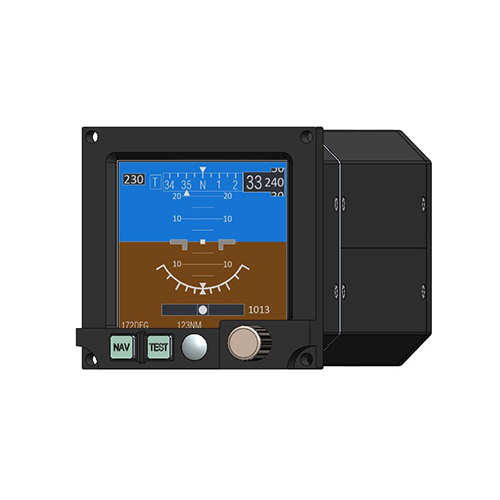

HDFD – Hawk-132
- Standalone LCD colour display unit
- 8cm x 8cm size, depth of 16cm
- Communicates with external ADU and AHRS units on four (4) ARINC-429 interfaces
- Located just below the HUD in front cockpit and below MFD in rear cockpit
- Displays airspeed, altitude, pitch, roll, heading and other parameters
- Displays essential flight parameters
Flight critical, mission proven
Antenna Control Unit
- Ground-based tracking unit for UAV
- Conduction-cooled PowerPC based single board computer with customised VME64 backplane and interface board
- Receives and transmits data over Ethernet link with different subsystems
- Digital inputs (16) and digital outputs (16)
- Analog inputs (8) and analog outputs (4)
- Ethernet ports (3), serial ports (3), CAN Bus, SSI interfaces (4)
- Interface with incremental and absolute encoders
- Embedded software with VxWorks RTOS, validated to DO-178B Level C
