Naval systems are crucial for securing maritime domains and ensuring the superiority of naval forces in both defense and offense. At Sigma Advanced Systems, we design and develop advanced naval systems that enhance the operational capabilities of modern navies all tailored to meet the rigorous demands of naval operations. With a focus on precision, durability, and innovation, our naval system provide strategic advantages, empowering naval forces to protect and defend their waters effectively.

NAVAL SYSTEM

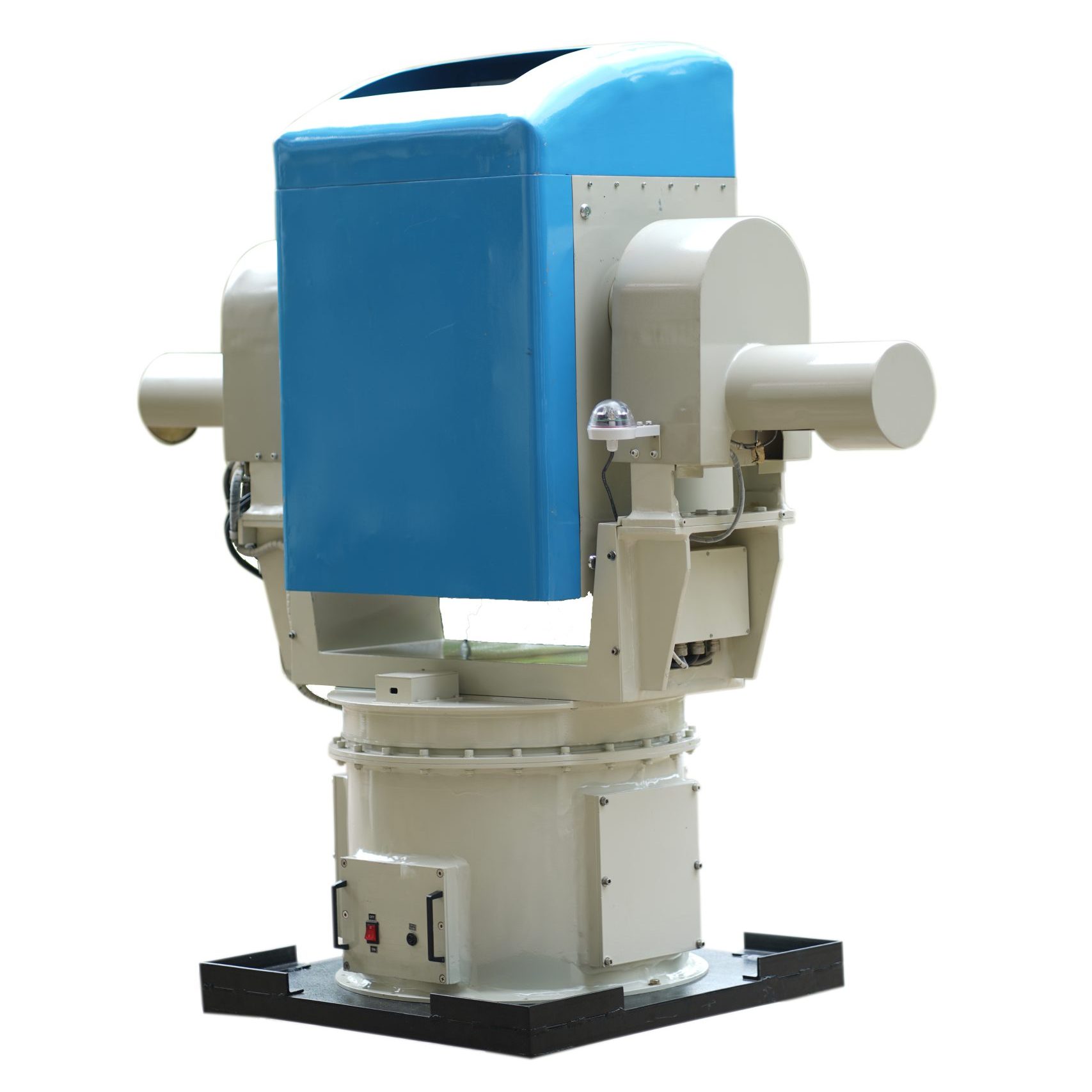

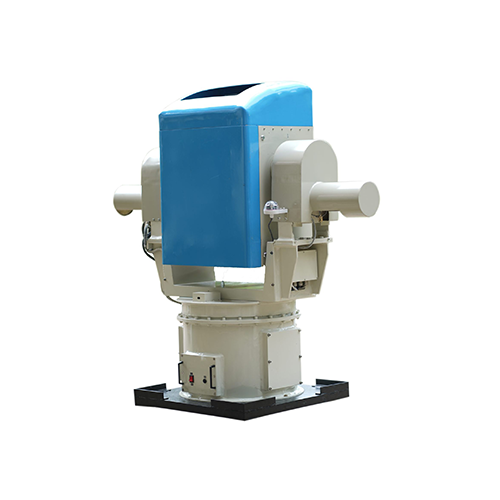

MS10-Cloud Lidar

Detects and measures cloud height up to 10 km, with 5-meter resolution
Fixed, Circular, Vertical & Conical scans
Transmits 1064 nm Laser
Receives reflected signal from cloud through a Cassegrain telescope and beam concentrator, focussing on an Avalanche Photo Diode
Data acquisition @ 40 MSPS, using high-speed Ultra Scale FPGA
Height resolution of 5 meters
Motorised Gimbal to point the system in Azimuth (0-360 degree) and Elevation (-20 to +90 degrees)
IP 66 enclosure (rain and dust resistant)
Temperature-controlled enclosure
Ethernet & Wi-Fi connectivity with Lab VIEW based Host GUI

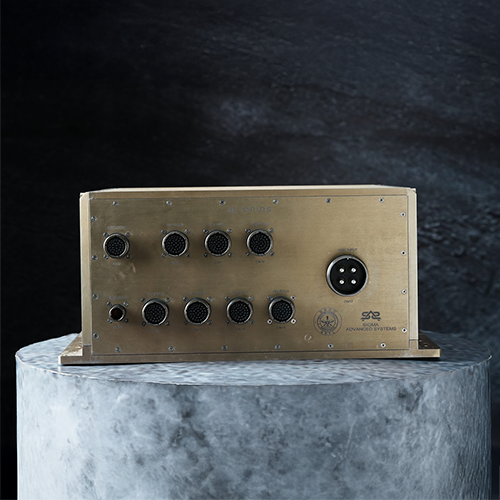

MPIDS (Mains Power Interface & Distribution System)

Deployed on High Endurance Autonomous Underwater Vehicle (HEAUV)
Meant for intelligent and controlled power distribution to different on-board subsystems
Accepts 150V DC battery input channel (14 kW)
Provides multiple output channels:

28V DC (32 Nos.) – 1.5 kW
48V DC (24 Nos.) – 1.5 kW

OBC interface on MIL-STD-1553
Dual-redundant System Controller
Multiple intelligent and independent power modules
Inter-module communication on CAN bus
Time Sequencer for Recovery
Round-shell connectors
