Environmental Testing at Sigma Advanced Systems ensures that our defense solutions can withstand the most extreme conditions. Our rigorous testing protocols simulate various environmental factors—such as temperature fluctuations, humidity, vibration, and exposure to corrosive elements—to validate the durability and performance of our systems.  By subjecting our products to these demanding conditions, we guarantee their reliability and effectiveness in real-world scenarios. This comprehensive approach ensures that every system we deliver performs consistently and meets the highest standards of quality, even in the harshest environments.

List of Environmental Chambers and Machines

  • Drying Oven:
    • SC-34 – Classic Scientific
  • Climatic Chamber:
    • AHC – Aircon
    • PAC-1000 BH-5K – CM Envirosystems (CME)
    • TEC-5050 – Tarang Kinetics
  • Electrodynamic Vibration Shaker System:
    • TEDV-2000 – Tarang Kinetics
  • Bump Test Machine:
    • TBTM-6060 – Tarang Kinetics
  • Hot Air Oven:
    • BTI-30 – Bio-Technics India
  • Mini Sound Level Meter:
    • 72-942 – Tenma

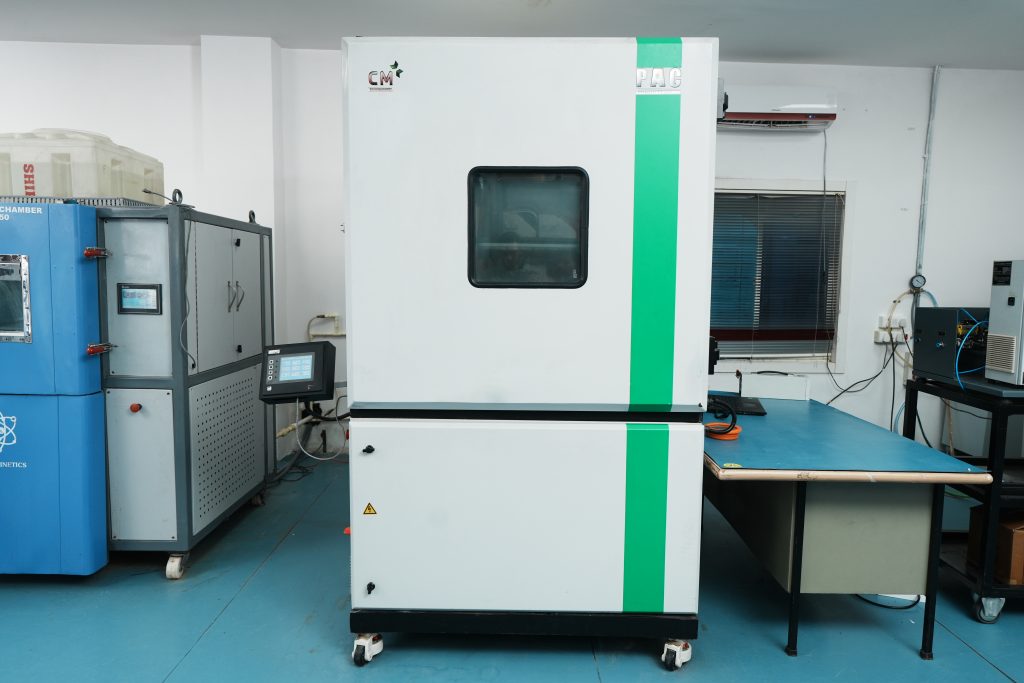

Climatic Chamber – 1 (CME PAC-1000-BH-5K)

  • Make: CM Envirosystems
  • Model: PAC-1000-BH-5K
  • Temperature Range: –70°C to +180°C
  • Rate of Change: 5°C per minute
  • Humidity Range: 10% RH to 98% RH
  • Resolution: 0.1°C & 1% RH
  • Operating Modes: Programmable & Manual
  • Test Space Volume: 1000 Liters
  • Internal Dimensions: 1000 × 1000 × 1000 mm
  • User Interface: LCD touch screen, remote monitoring & operation

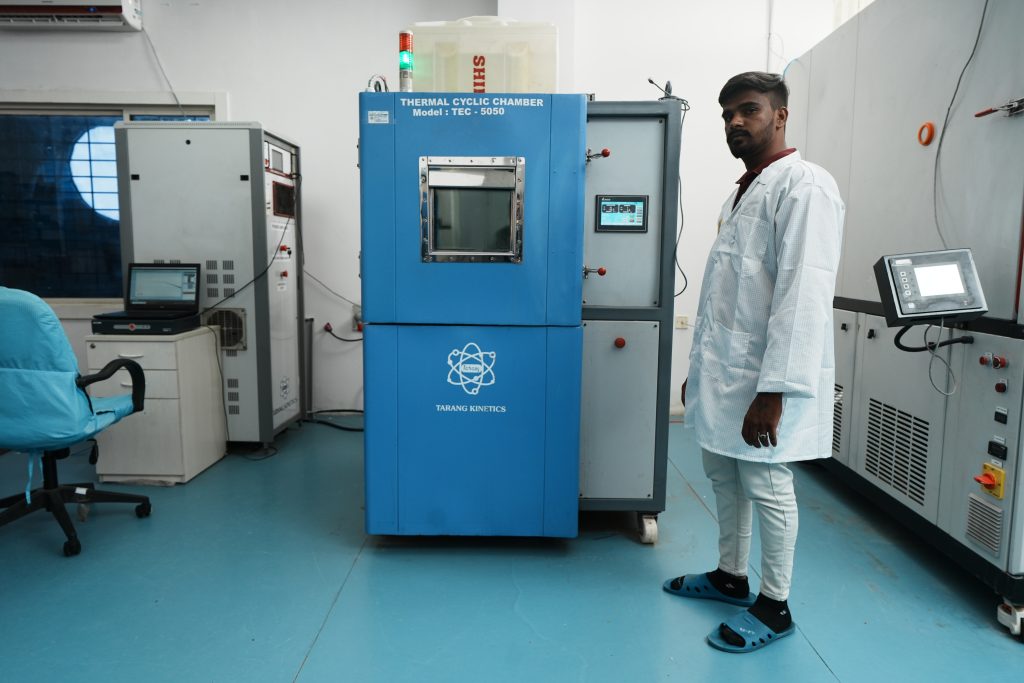

Climatic Chamber – 2 (Tarang Kinetics TEC-5050)

  • Make: Tarang Kinetics
  • Model: TEC-5050
  • Temperature Range: –70°C to +180°C
  • Rate of Change: 10°C per minute
  • Humidity Range: 0% RH to 98% RH
  • Resolution: 0.1°C & 1% RH
  • Operating Modes: Programmable & Manual
  • Test Space Volume: 500 Liters
  • Internal Dimensions: 500 × 650 × 500 mm
  • User Interface: LCD touch screen

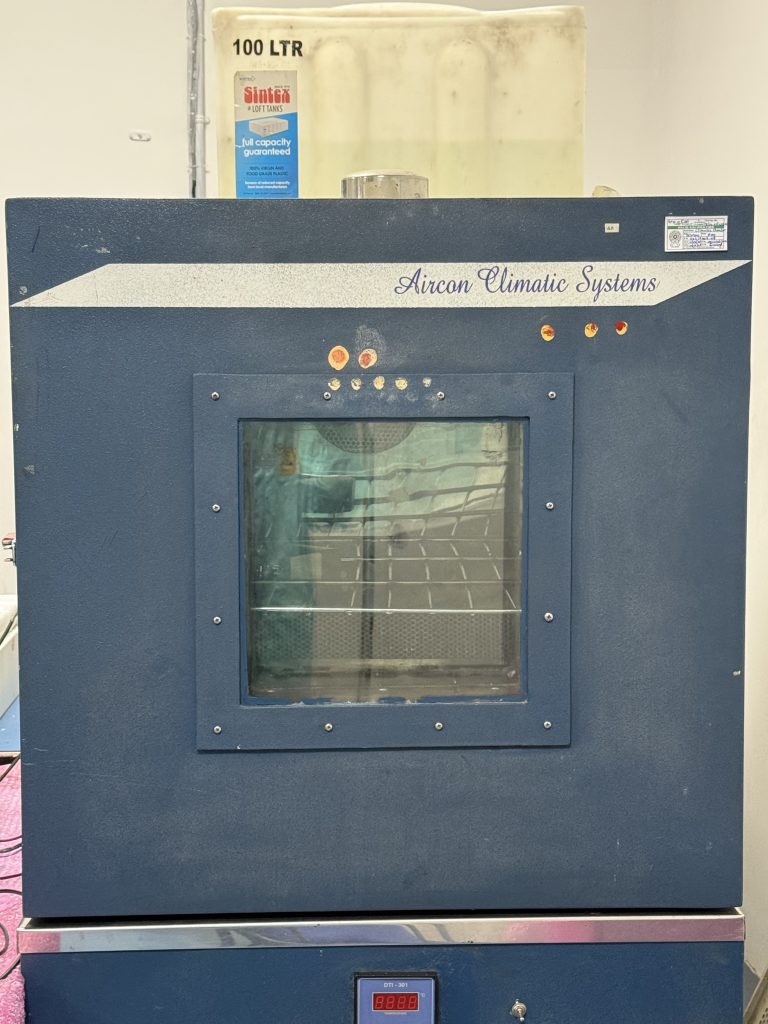

Climatic Chamber – 3 (Aircon AHC)

  • Make: Aircon
  • Model: AHC
  • Temperature Range: –30°C to +180°C
  • Rate of Change: 3°C per minute
  • Humidity Range: 0% RH to 98% RH
  • Resolution: 0.1°C & 1% RH
  • Operating Modes: Programmable & Manual
  • Test Space Volume: 600 Liters
  • Internal Dimensions: 600 × 750 × 600 mm
  • User Interface: LCD with keypad

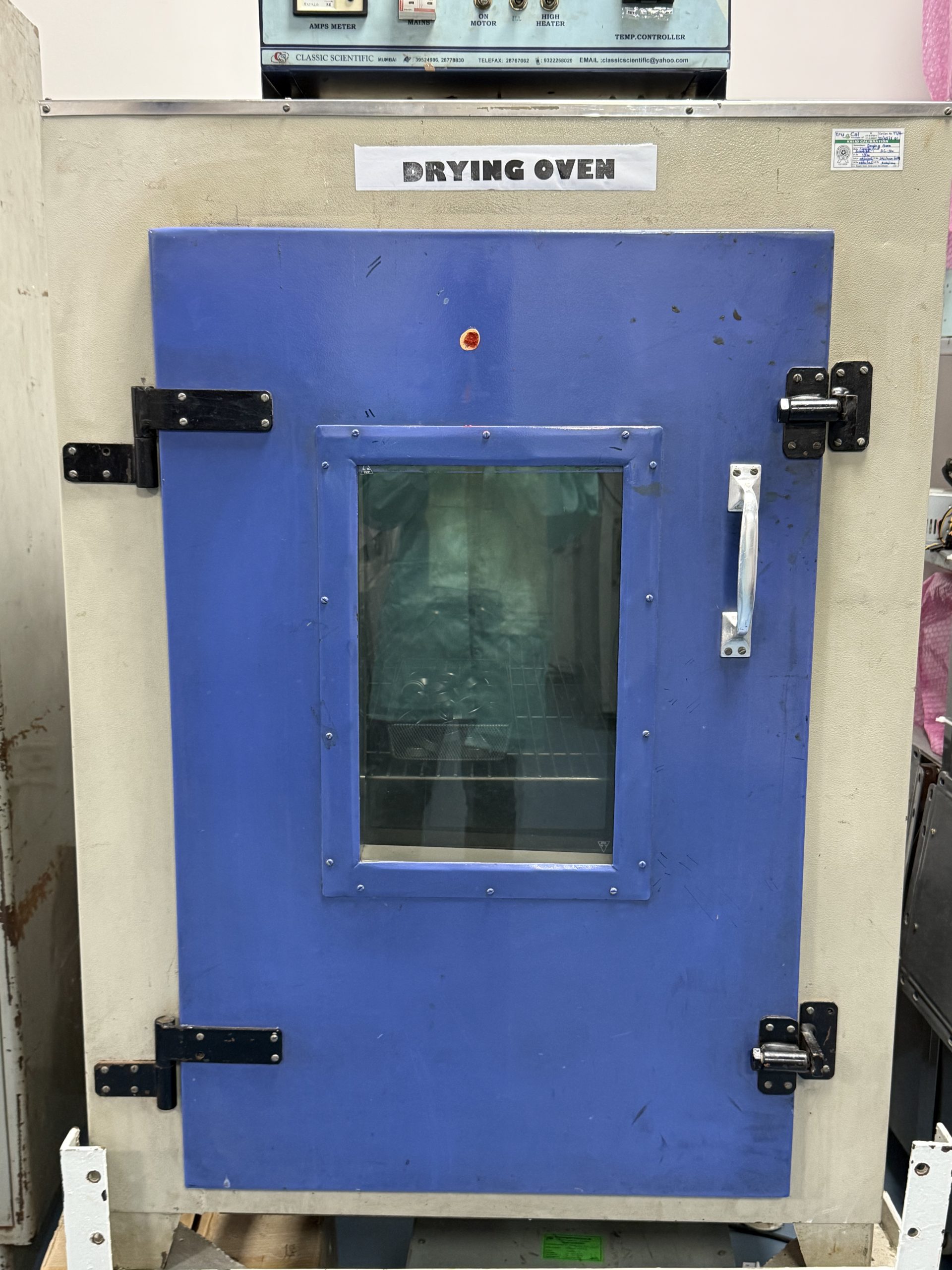

Drying Oven (Classic Scientific SC-34)

  • Make: Classic Scientific
  • Model: SC-34
  • Temperature Range: Ambient to +200°C
  • Resolution: 0.1°C
  • Operating Mode: Manual
  • Test Space Volume: 600 Liters
  • Internal Dimensions: 600 × 600 × 950 mm
  • User Interface: 7-segment display with keypad

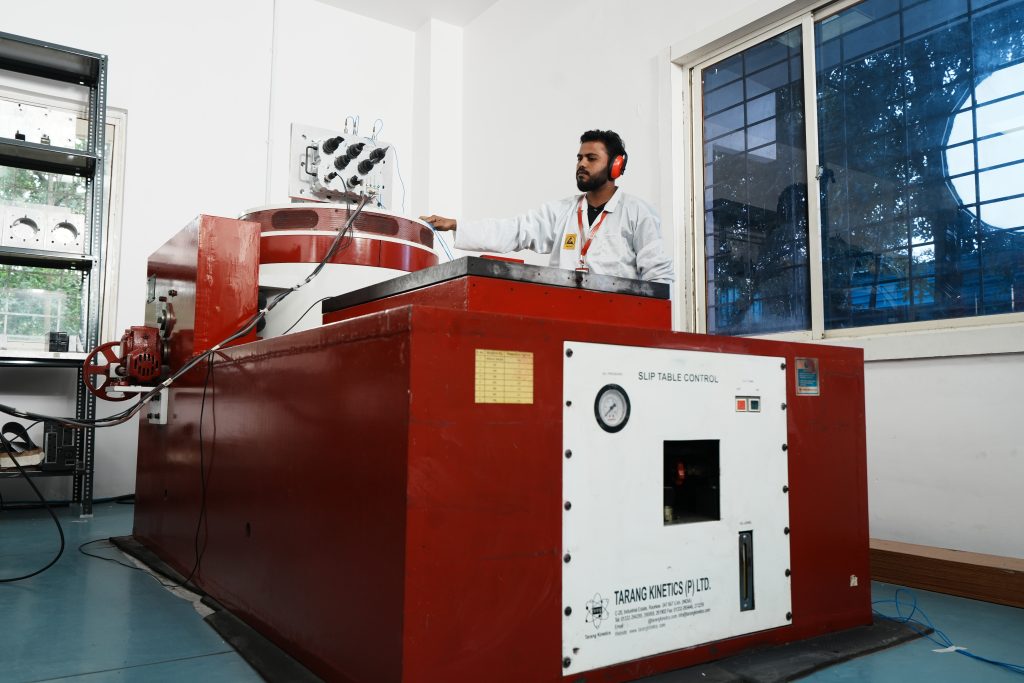

Electrodynamic Vibration Shaker System (Tarang Kinetics TEDV-2000)

  • Make: Tarang Kinetics
  • Model: TEDV-2000
  • Max Acceleration: 80 g
  • Max Displacement (P-P): 51 mm
  • Velocity: 1.8 m/s
  • Frequency Range: 5 Hz to 2800 Hz
  • Payload Capacity: 300 kg
  • Rated Force:
    • 2000 kgf peak sine
    • 4000 kgf RMS shock
  • Dimensions:
    • Horizontal Slip Table: 600 × 800 mm
    • Head Expander: 600 mm diameter
  • Tests Supported: Random vibration, sine vibration, shock test
  • User Interface: PC-based control, monitoring & waveform analysis

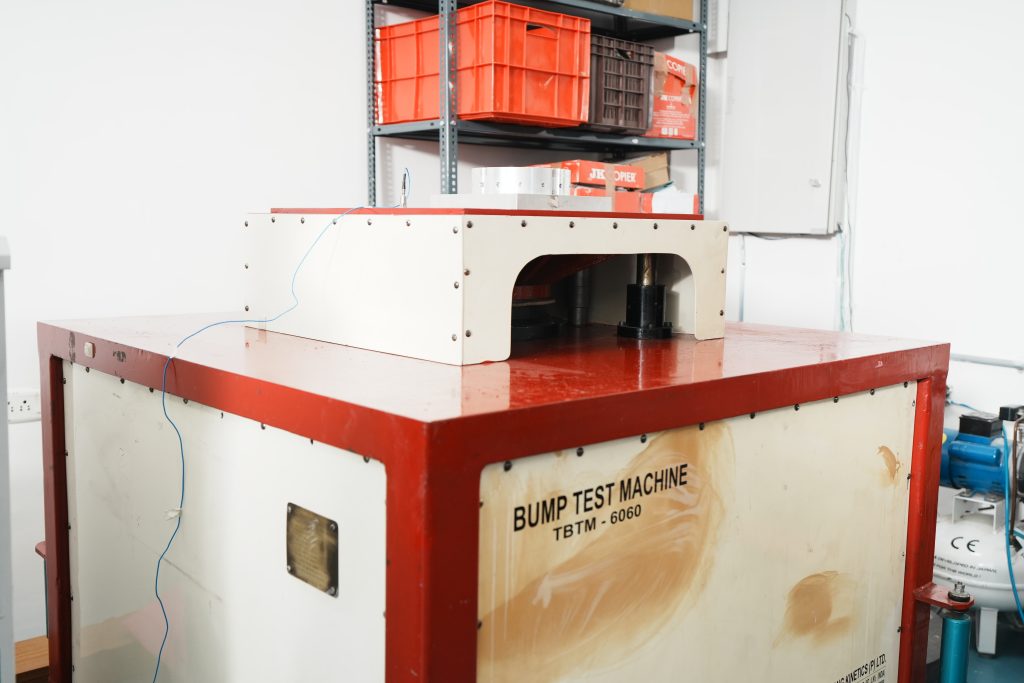

Bump Test Machine (Tarang Kinetics TBTM-6060)

  • Make: Tarang Kinetics
  • Model: TBTM-6060
  • Type: Free fall
  • Acceleration: 3 g to 50 g
  • Bump Rate: 1 to 3 bumps/sec
  • Pulse Shape: Half-sine
  • Pulse Duration: 3 ms to 18 ms
  • Max Drop Height: 50 mm adjustable
  • Table Size: 600 × 600 mm
  • Max Specimen Weight: 300 kg
  • Max Specimen Height: Unlimited
  • Max Specimen Size: 600 × 600 × Unlimited
  • User Interface: PC-based control, monitoring & waveform analysis
