Innovation in Every Bolt, Precision in Every Turn.
GPS Radio Unit
- Vehicle Tracking System based on LoRa Radio Communication.
- Deployed at airports for vehicle tracking and reporting
- Monitors and reports on vehicle location, speed, and battery status.
- Comprises of four main sub-systems.
- Sensors (GPS & Radio Unit)
- Records and transmits vehicle data.
- GPS Coordinates
- Vehicle Speed
- Data encryption & Decryption
- User interface for data visualization and reporting.
- Displays real-time vehicle location
- Provides historical tracking and reports
- Operates from 12V to 36V

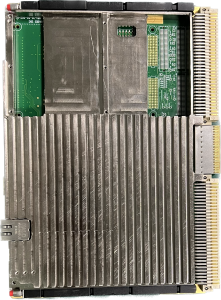

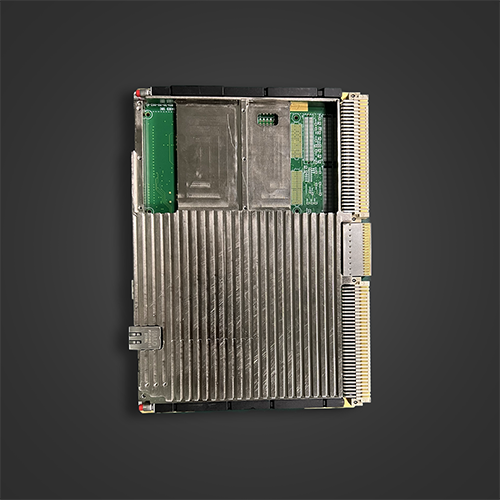

ESM Processor
- Dual Zynq - High Performance ARM processors + Kintex FPGA
- VPX Interface, 6U Form Factor, Rugged conduction cooled board
- Supports Optical and Ethernet interface
- VxWorks RTOS and drivers
- Fully Qualified and Field Tested

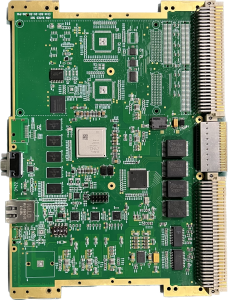

Zynq Ultrascale based SBC
- 6U VME64x Bus based SBC; Conduction-cooled
- 8 GB DDR-4 Memory; 8GB eMMC /SPI Flash
- Gigabit Ethernet ports (2), Serial ports (6), CAN Bus (2)
- TTL level Digital inputs and outputs
- Linux / Vx Works RTOS support

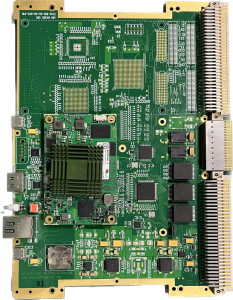

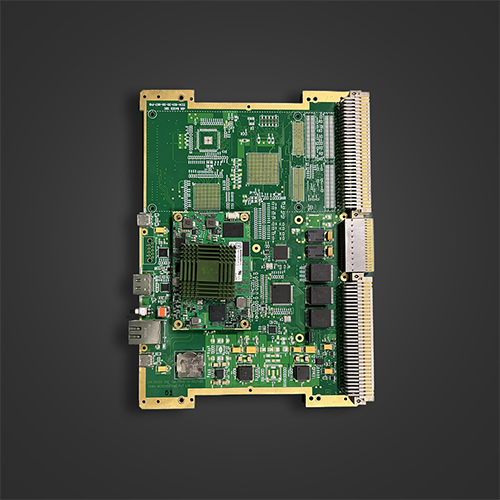

Intel ATOM based Single Board Computer
- 6U VME64x Bus based SBC; conduction-cooled
- 8 GB DDR-4 Memory / Up to 8GB eMMC / SPI Flash
- Gigabit Ethernet ports (2), USB 3.0 interfaces (2), Serial Ports (2)
- One HDMI display Interface
- Windows OS support

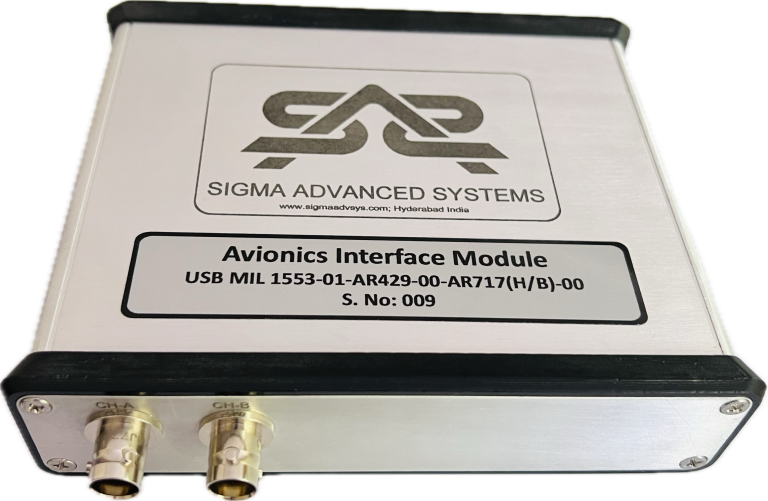

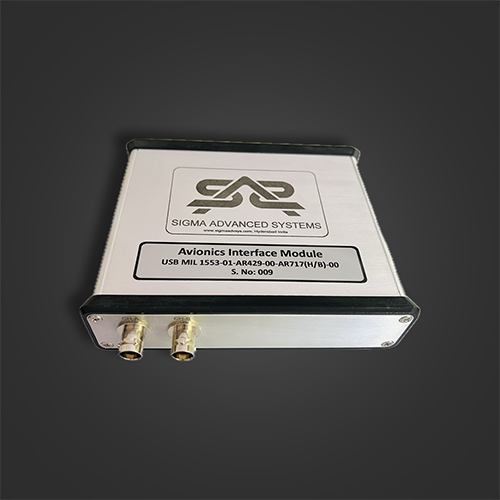

USB based MIL-STD-1553 Interface
- Multi-Node module supports versatile communication modes
- Up to Four channels with support for BC, RT, and MT modes (Total ACE)
- One MIL-1553 Channel supporting BC and Multi-RT modes (Total Xtreme)
- USB 2.0 High-Speed Interface (480 Mbit/s) and Full-Speed (12 Mbit/s) for fast data transfer
- Integrated 10/100 Ethernet Transceiver for reliable network connectivity.
- RS-232/RS-485/RS-422 Multiprotocol Transceivers for flexible communication
- CAN Bus Transceivers for industrial control system integration.
- 4-Channel SPI Support for connecting ARINC devices.
- Powered by a 12V Adapter for consistent performance.
- BJ77 Connectors for MIL-STD-1553
- USB B/C Connector for versatile USB connectivity.
- RJ45 Connector for Ethernet network integration.
- 26-Pin DSUB Connector supporting MIL-1553, RS-232/RS-485/RS-422, and CAN signals.
- Compact Tabletop Module Design for easy integration into various systems.
- Designed for applications requiring multiple communication protocols in a single solution.

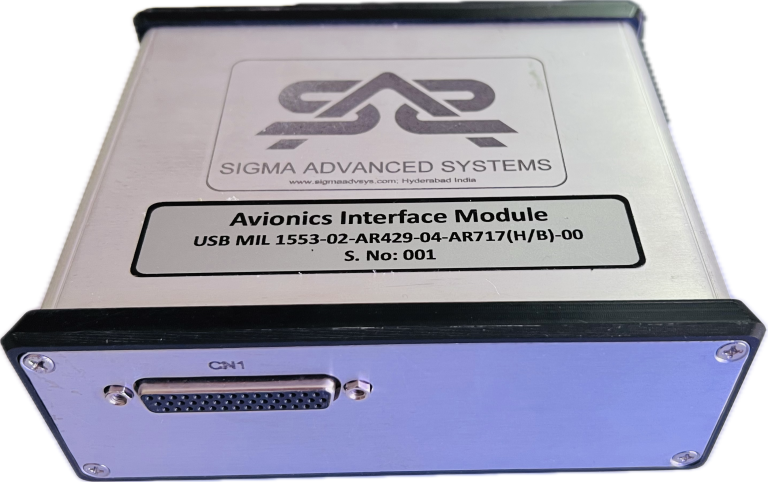

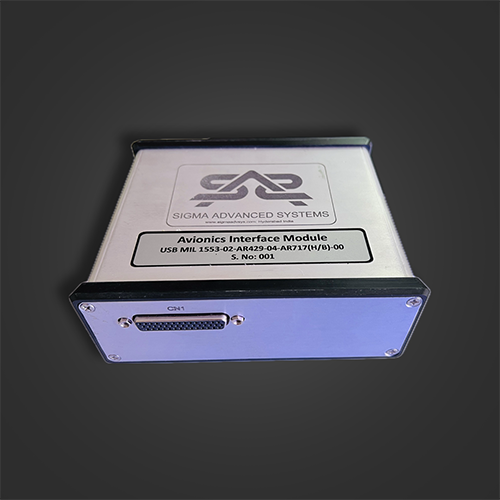

USB based ARINC-429 Interface
- ARINC 429 Multi Tx & Rx Module for flexible communication solutions.
- Supports 1 to 32 Tx Channels and 1 to 64 Rx Channels for extensive data transfer capabilities
- Features an SPI Interface for seamless communication with the host.
- Provision for 10.5k/100kbps for different data rate options.
- USB 2.0 High-Speed Interface (up to 480 Mbit/s) and Full-Speed (12 Mbit/s) for fast data communication.
- High-Performance 10/100 Ethernet Transceiver for reliable network connections.
- Includes RS-232/RS-485/RS-422 Multiprotocol Transceivers for versatile communication.
- CAN Bus Transceivers for industrial system integration.
- 4-Channel SPI Support for connecting ARINC devices.
- Powered by a 12V Adapter for stable performance.
- BJ77 Connectors for MIL-1553
- USB B/C Connector for flexible USB connectivity.
- RJ45 Connector for Ethernet connectivity, ensuring network reliability.
- 26-Pin DSUB Connector for MIL-1553, RS-232/RS-485/RS-422, and CAN signals.
- 44/15-Pin DSUB Connectors for ARINC 429 signals, offering seamless integration.
- Compact Tabletop Module Design for easy installation and use.
- MIL-1553 Section Integration allows simultaneous use of both MIL-1553 and ARINC 429 communication protocols.

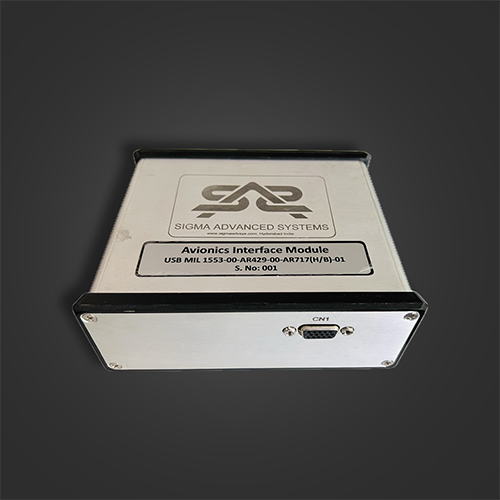

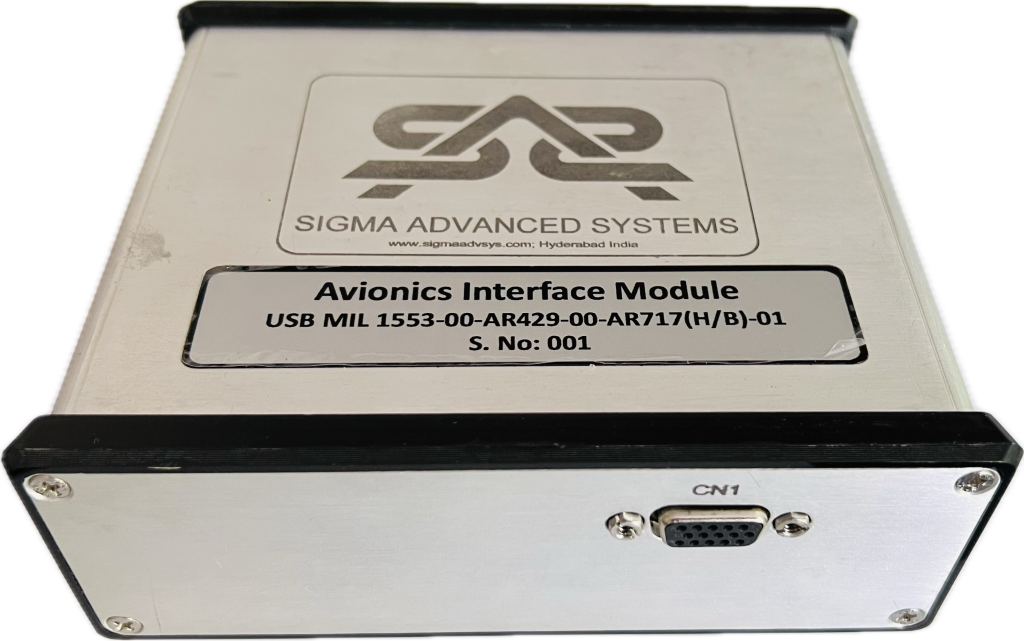

USB based ARINC-717 Interface
- ARINC 717 Multi Tx & Rx Module for versatile data communication.
- Supports 1 to 4 Tx Channels and 1 to 4 Rx Channels for flexible data transfer.
- Includes an SPI Interface for seamless host communication.
- Provision for up to 8 Kbps data transfer for diverse applications.
- Supports BPRZ & HBZ formats for enhanced compatibility.
- USB 2.0 High-Speed Interface (up to 480 Mbit/s) and Full-Speed (12 Mbit/s) for fast data transmission.
- High-Performance 10/100 Ethernet Transceiver for reliable network communication.
- Includes RS-232/RS-485/RS-422 Multiprotocol Transceivers for flexible interfacing.
- CAN Bus Transceivers for industrial system integration.
- 4-Channel SPI Support for easy connection to ARINC devices.
- Powered by a 12V Adapter for stable and consistent operation.
- BJ77 Connectors for MIL-1553 ensuring secure connections.
- USB B/C Connector for versatile USB connectivity options.
- RJ45 Connector for Ethernet, supporting reliable network connectivity.
- 26-Pin DSUB Connector for MIL-1553, RS-232/RS-485/RS-422, and CAN signals.
- 15-Pin DSUB Connector for ARINC 429 signals, ensuring compatibility with legacy systems.
- Compact Tabletop Module Design for easy integration into your setup.
- MIL-STD-1553 and ARINC 429 Integration for simultaneous use of MIL-1553, ARINC 429, and ARINC 717 communication protocols
